SOK BATTERY 48V RACK SERIES
SOK 48V 100Ah Server Rack LiFePO4 Battery,Self-heated, Bluetooth
$3,596.00
4 batteries · 20.48kWh totalIn stock · Ships from available inventory
SKU: SK48V100N · Shipping and taxes calculated at checkout.
Rack-ready LiFePO4 energy storage
- 5.12kWh per battery: 51.2V, 100Ah in a compact 3U rack module.
- 100A discharge: reliable power for compatible 48V systems.
- CAN & RS485: communication for configured inverter systems.
- Indoor installation: IP20 steel enclosure and standard 19-inch rack format.
- Self-heated & Bluetooth: built-in heating, Bluetooth OTA support and inverter protocol selection.
- 7-year limited warranty.
7-year limited warrantyModel-specific coverageProduct documentsSpec sheet & user manualNeed help choosing?Contact our support team
SK48V100N4 Pack
$3,596.00From $3,596.00
To $19,176.00
In stock
SKU
SK48V100N
BUILD YOUR SYSTEM
Frequently Bought Together
Choose an add-on to include with your selected battery pack.
Your selection
4 Pack × 1$3,596.00
Selected add-ons$0.00
Total$3,596.00
RACK-READY ENERGY STORAGE
5.12kWh per module.
Built for your next expansion.
The SOK SK48V100N combines 51.2V, 100Ah capacity and CAN / RS485 communication in a compact 3U rack format. Choose a pack for your indoor 48V energy storage system.
51.2VNominal voltage
100AhPer battery
5.12kWhPer battery
100ADischarge current

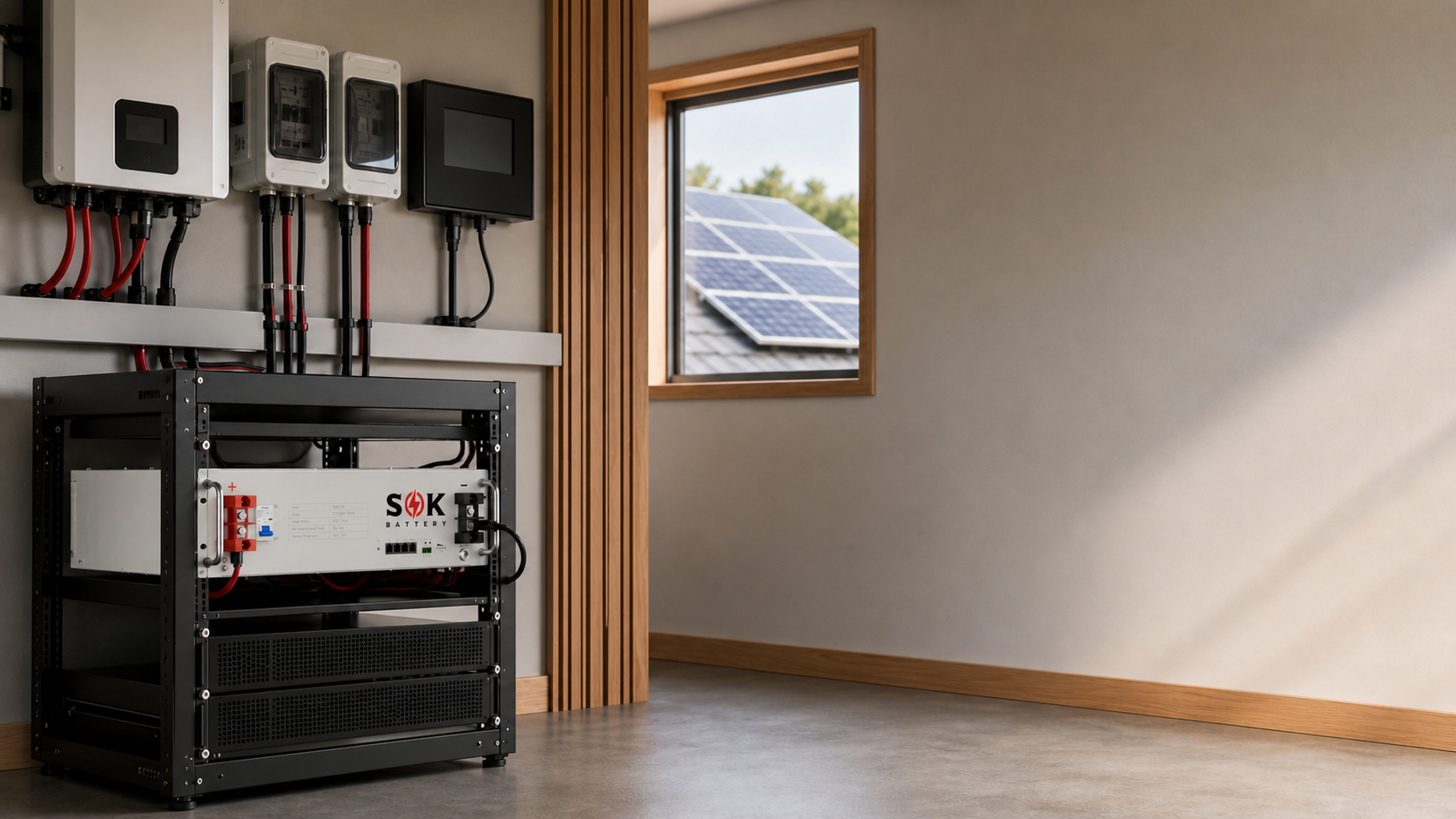

HOME SOLAR & OFF-GRID
More storage.
A smaller footprint.
A 3U module keeps your battery storage organized in a standard 19-inch indoor equipment rack. Each battery provides 5120Wh of nominal energy with up to 100A discharge.
- 51.2V / 100Ah LiFePO4 battery
- CAN and RS485 communication interfaces
- Designed for compatible, properly configured 48V systems

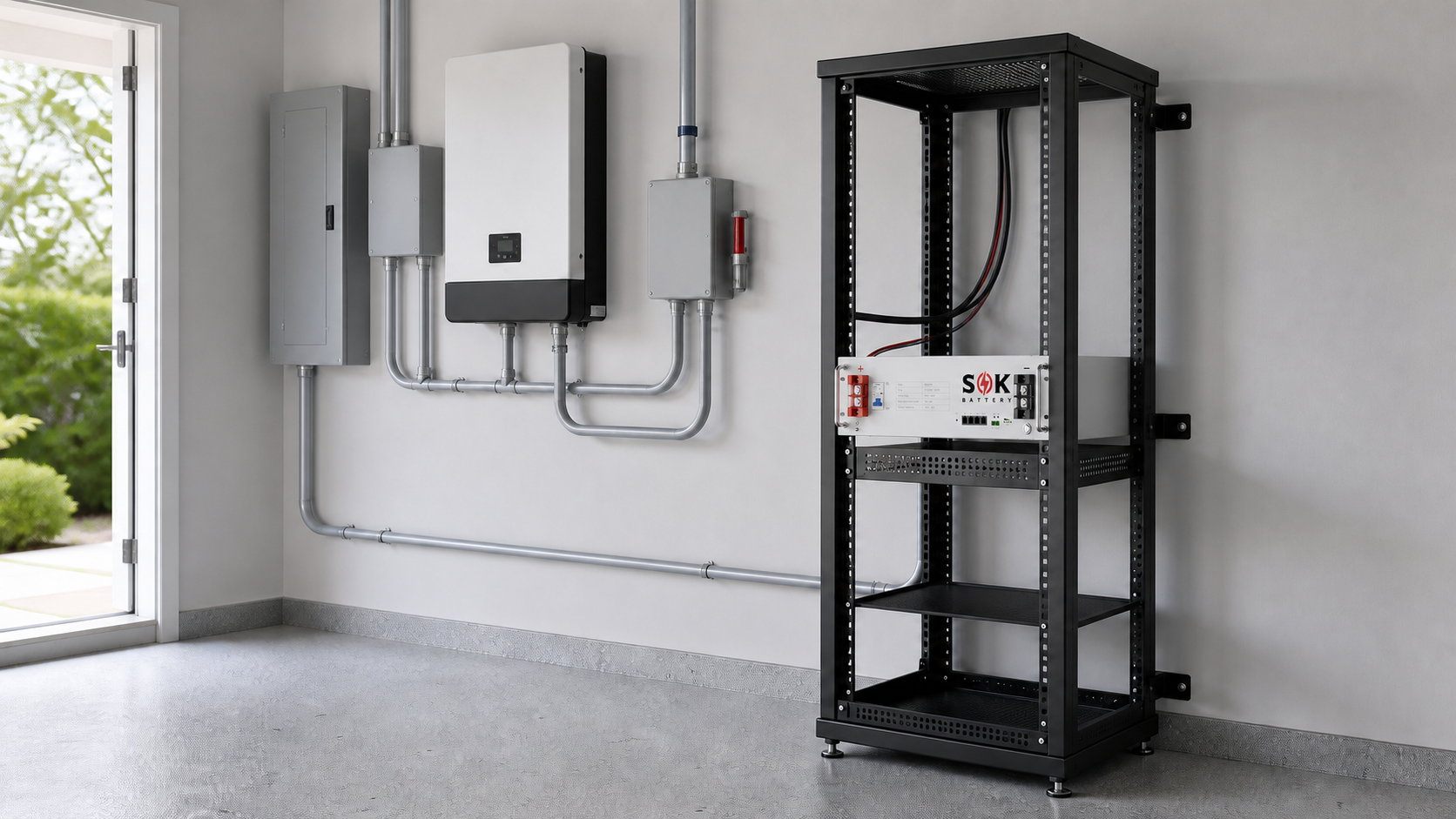

EXPANDABLE HOME ENERGY
A rack-ready building block.
Start with 4 modules and choose larger packs as your installation requirements grow. Use a dry indoor cabinet with properly sized rack support, conductors and protection.
- 4 Pack: 20.48kWh nominal energy
- 8 Pack: 40.96kWh nominal energy
- 12 Pack: 61.44kWh nominal energy
- 24 Pack: 122.88kWh nominal energy
Pack energy is the sum of module ratings. System configuration and parallel limits must follow the current product manual.
KNOW YOUR BATTERY
Technical specifications
Specifications below are for one SK48V100N battery.
| Model | SK48V100N |
|---|---|
| Battery chemistry | LiFePO4 |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 5120Wh |
| Recommended charge current | 50A |
| Maximum charge current | 100A |
| Discharge current | 100A |
| Peak discharge current | 120A for 1 minute |

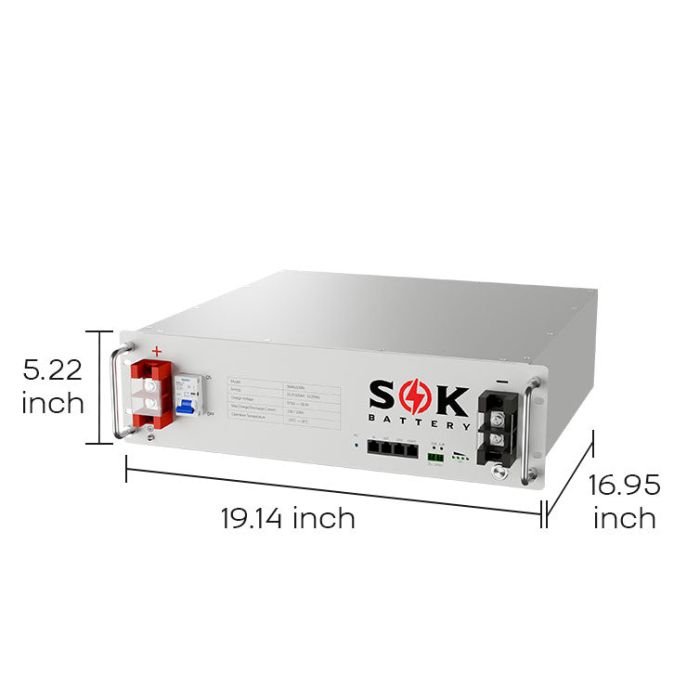

| Dimensions (L × W × H) | 19.14 × 16.95 × 5.22 in |
| Approximate weight | 100 lb |
| Terminal type | M8 |
| Communication interfaces | CAN and RS485 |
| Form factor | 3U rack mount |
| Case material | SPCC + SGCC steel |
| Enclosure protection | IP20 — dry indoor use |
| Warranty | 7-year limited warranty |
DOCUMENTS & SUPPORT
Everything you need to get started.
BEFORE YOU BUY
Frequently asked questions
How many batteries are included?
Select 4, 8, 12 or 24 batteries per pack. The minimum pack contains 4 SK48V100N modules. Quantity refers to the number of packs.
Can the battery be installed outdoors?
The IP20 steel enclosure is intended for dry indoor installations. Protect the battery from water and outdoor exposure.
Which communication interfaces are available?
The SK48V100N supports CAN and RS485. Check the current manual and inverter compatibility before configuring your system.
What is the recommended charging current?
The recommended charge current is 50A per module, with a maximum charge current of 100A. Follow the current product manual for complete charging and safety requirements.
